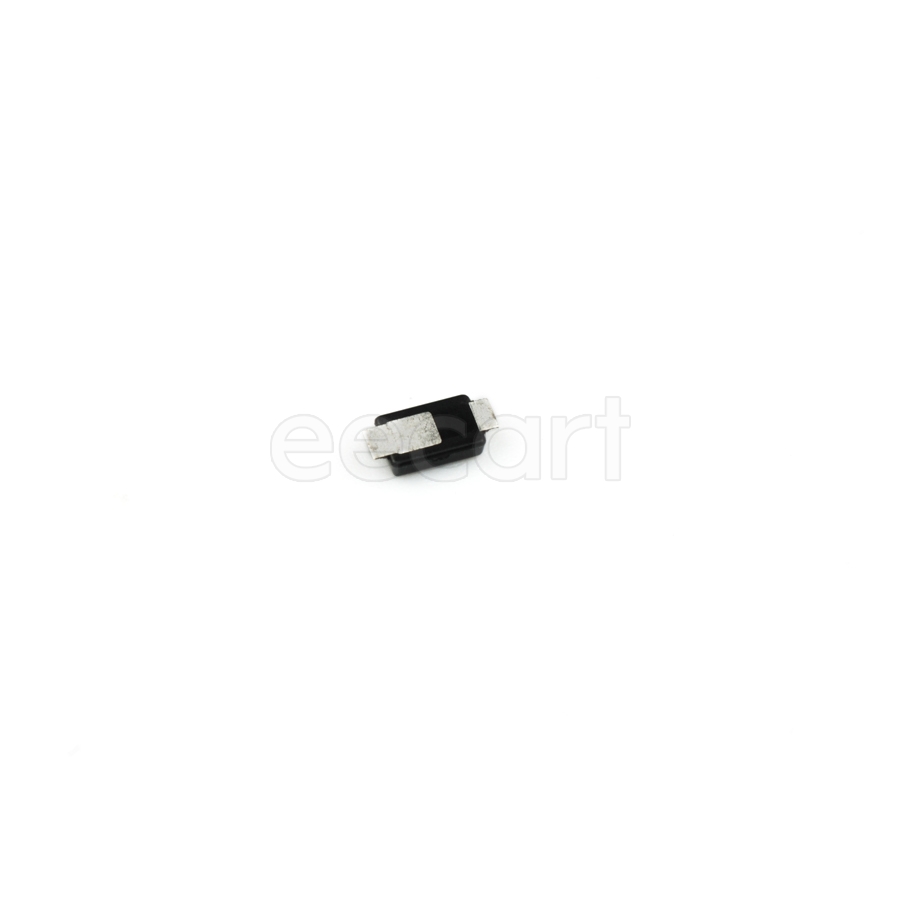

RS1JLS RVG
Manufacturer:
Taiwan Semiconductor
Mfr.Part #:
RS1JLS RVG
Datasheet:
Description:
Rectifier Diodes SOD-123HE SMD/SMT Single Forward Current:1.2 A Forward Voltage:1.3 V Reverse Voltage:600 V
| Parameter | Value |
|---|---|
| RoHS | Compliant |
| Weight | 10.007382 mg |
| Forward Current | 1.2 A |
| Lifecycle Status | Production (Last Updated: 1 year ago) |
| Element Configuration | Single |
| Max Surge Current | 50 A |
| Reverse Current | 150 µA |
| Recovery Time | 300 ns |
| Reverse Voltage (DC) | 600 V |
| Schedule B | 8541100080 |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 1 year ago) |
| Max Operating Temperature | 150 °C |
| Min Operating Temperature | -55 °C |
| Packaging | Reel |
| Average Rectified Current | 1.2 A |
| Forward Voltage | 1.3 V |
| Reverse Voltage | 600 V |
| Forward Surge Current (Ifsm) | 50 A |
Stock: 11
Distributors
pcbx
pcbxUnit Price$0.29410
Ext.Price$0.29410
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.29410 | $0.29410 |
| 10 | $0.20946 | $2.09460 |
| 50 | $0.16552 | $8.27600 |
| 100 | $0.13080 | $13.08000 |
| 500 | $0.08977 | $44.88500 |
| 1000 | $0.07198 | $71.98000 |
| 3000 | $0.06474 | $194.22000 |
| 5000 | $0.05822 | $291.10000 |
| 10000 | $0.04693 | $469.30000 |
